For the wastewater facility’s effluent pump station, we evaluated a WEG W60 induction motor paired with a VFD to match pump affinity laws and minimize losses across the control range. The selection targets a 1200 HP, 8-pole, 4160 V machine operating around 33.85 Hz with a rated speed of ~500 rpm at the duty point. This delivers the torque required for the pump curve while keeping thermal margins and mechanical integrity in check.
The motor’s shaft design is crucial for stability and performance. I selected 316L stainless steel for its superior corrosion resistance and strength, ensuring it can withstand torsional stresses and mechanical wear. The design is optimized for efficient torque transmission, with precise tolerances for coupling and bearing fitments. These design features, along with material choice, were validated through FEA simulations to ensure long-term reliability and performance.
Effluent pump station pumps are responsible for moving treated wastewater from the treatment plant to its final discharge point, such as rivers, oceans, or reuse systems. They operate almost continuously, handling very large volumes of water every day. Because of this, efficiency, reliability, and safety are critical to avoid system failures or environmental impacts. These pumps are often paired with advanced motors and controls, like VFDs, to optimize energy use and adapt to changing flow conditions.

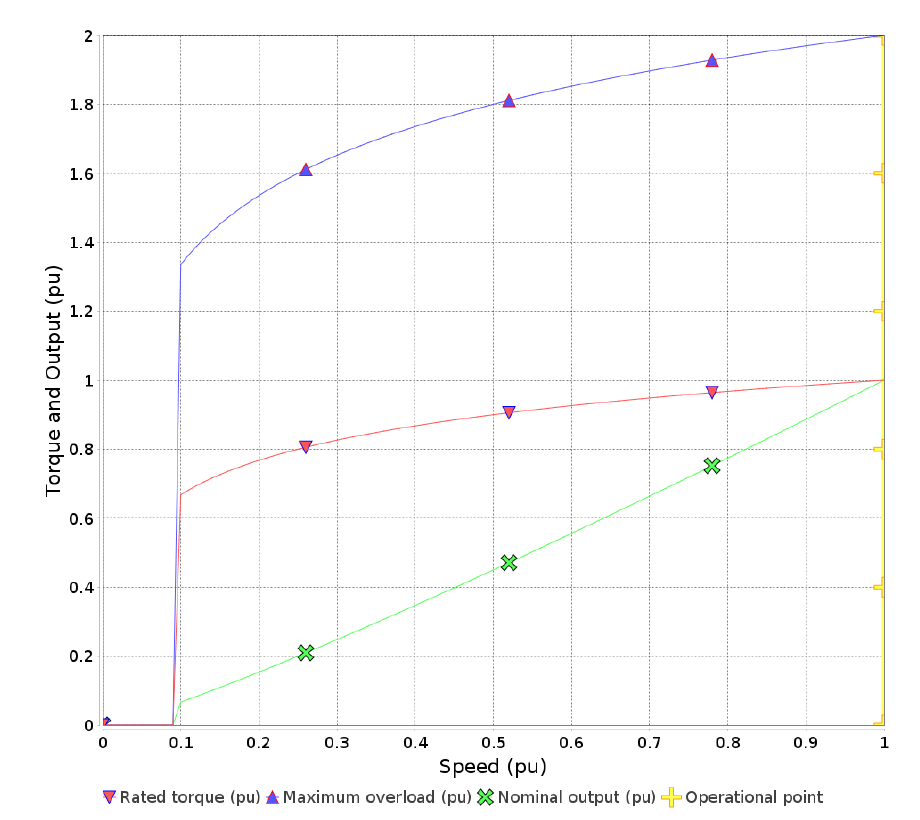

The working band is sized for variable-torque pump control (roughly 17–34 Hz). Within this window the motor maintains high efficiency for a VFD-driven induction machine and adequate power factor at load, while meeting terminal stress limits from the drive (peak voltage and dV/dt) when the output filtering and cable spec are selected appropriately.
Key outcomes: stable torque across the EPS control points, reduced throttling, and quieter hydraulics versus fixed-speed operation.
The configuration is intended for vertical mount (V1) with ingress protection suitable for damp galleries. Cooling selection aims to keep a compact footprint while avoiding contamination of internals. Service factor and insulation class provide thermal headroom on VFD with controlled ramps. The rotor inertia informs start profile selection and torsional checks against the pump train.

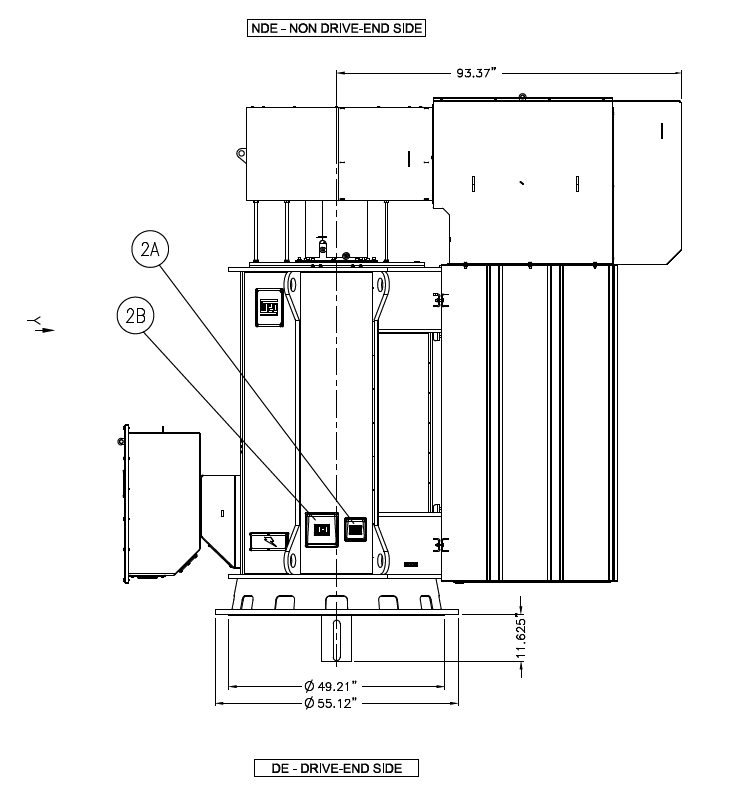

Practical checks: baseplate stiffness, lifting points and crane clearances, cable entry orientation, and cooler access for maintenance.
From plan view, verify terminal box rotation and phase spacing, unobstructed airflow around the heat-exchange surfaces, and clear access paths for filter/core service. Ensure motor orientation aligns with cable routing and gland requirements, and that cooler faces are not blocked by pipework or handrails.
The shaft-end drawing drives the spacer-coupling dimensions: journal diameter/tolerance, keyway geometry, and hub overhang. For a vertical pump application, confirm the thrust path and bearing arrangement with the OEM to ensure axial load capacity across the VFD speed range. Specify balance grade and shaft runout on the certified print to simplify alignment and vibration acceptance.
